Fine Bubble Tube Diffuser can be connected on one side or in pairs to different rectangular and round tubes (ABS/PVC material) with the appropriate adapter. The membranes are manufactured with premium quality EPDM/SILICONE/TPU material and are available with fine bubble perforation.The support tubes (ABS /PVC/PP material) can be reused when membranes are replaced. The units offer maximum performance at minimum cost and require minimum maintenance.
Membrane Fine Bubble Tube Diffuser EPDM Membrane Oxygen Fine Bubble Tube Diffuser Aeration for Industrial & Farm
Product Description
Fine Bubble Tube Diffuser can be connected on one side or in pairs to different rectangular and round tubes (ABS/PVC material) with the appropriate adapter. The membranes are manufactured with premium quality EPDM/SILICONE/TPU material and are available with fine bubble perforation.The support tubes (ABS /PVC/PP material) can be reused when membranes are replaced. The units offer maximum performance at minimum cost and require minimum maintenance.
Advantages of EPDM bubble diffuser
1.High tear resistance
2.Anti-blocking, anti-intrusion
3.Uniform gas distribution, energy saving and high efficiency
4.Anti-aging, anti-corrosion
5.Low resistance loss
Package Type: By carton and pallet
Shipment terms: FOB, CIF, CFR
Port: Qingdao, Shanghai
EPDM Membrane Material
Manufactured by compression molding with a standard cure, low plasticizer content, and 1mm or 2mm perforations. Compression molding with modern equipment utilizing individual thermocouples and vacuum technology ensures a repeatable very high quality product.
Type: Tube type
Membrane material :EPDM
Tube material : ABS Plastic
304# or 316# stainless steel ear clamp
3/4'' BSP screw, EPDM washer
Specifications has Φ65mm, Φ90mm, Φ110mm
Length could be according to clients's requirements.
Application of EPDM diffuser membrane air fine bubble aeration diffuser
1.Aeration of fishpond and other applications
2.Aeration of deep aeration basin
3.Aeration for excreta and animal wastewater treatment plant
4.Aeration for denitrification/dephosphorization aerobic processes
5.Aeration for high concentration wastewater aeration basin,and aeration for regulating pond of wastewater treatment plant
6.Aeration for MBBR reaction basin,contact oxidation pond;activated sludge aeration basin in sewage disposal plant

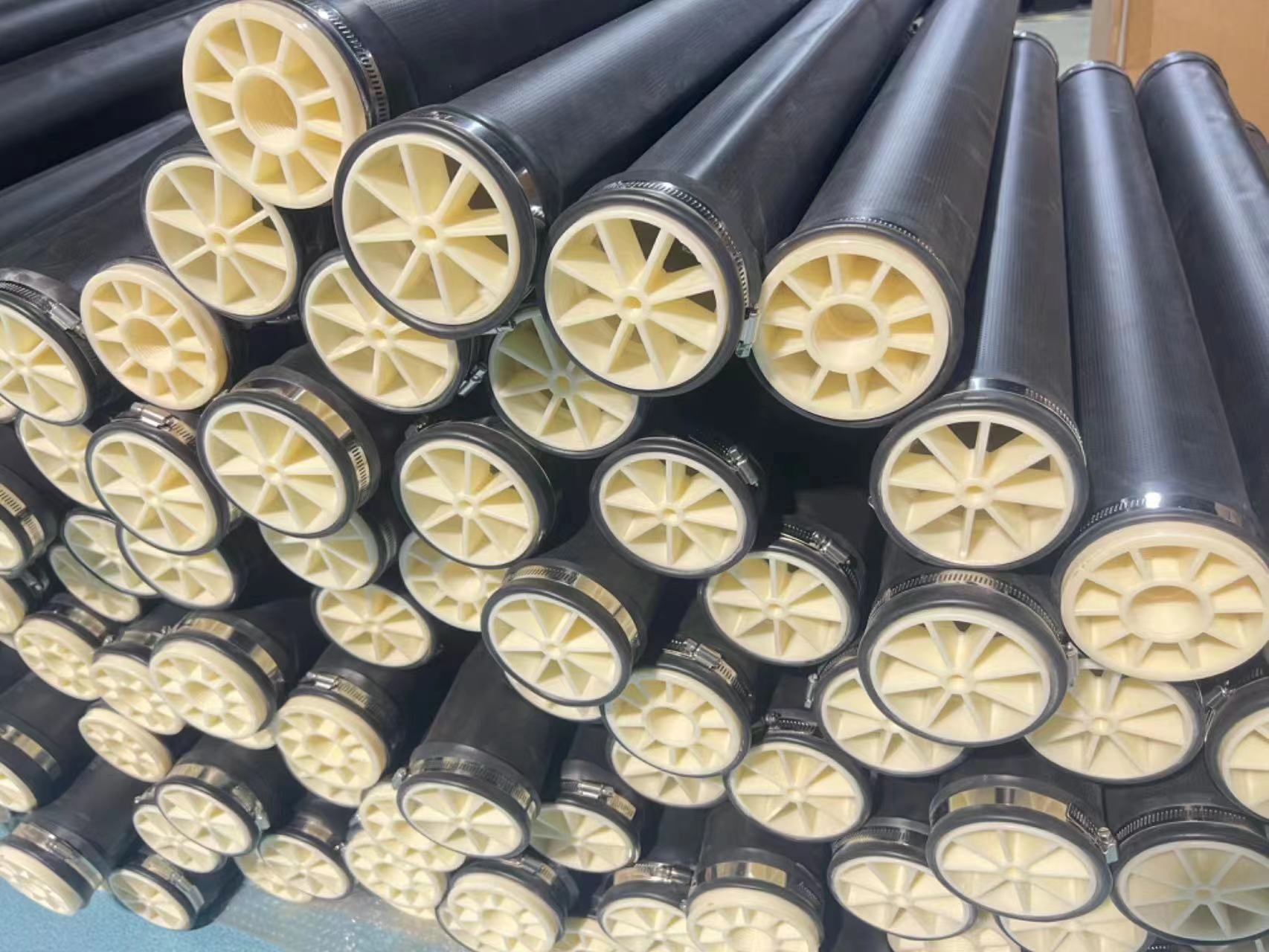

Product Display
Application
Product name | Fine Bubble Tube Diffuser | ||
Model No. | FBM-EMDM DF | ||
Membrane material | EPDM | ||
Productivity | 10000 PCS/Month | ||
Color Available | Black, white, blue | ||
Service life | More Than 5 Years | ||
Length | 300mm, 500mm, 750mm, 1000mm or any customized length | ||
Diameter | 65mm/90mm/110mm | ||
Water Submerged Depth | 4-8 m | ||
Model | 65mm DF | 90mm DF | 110mm DF |
Length | 300/500/750/1000MM | 300/500/750/1000MM | 300/500/750/1000MM |
Connector | 1"NPT male thread 3/4" NPT male thread | 1"NPT male thread 3/4" NPT male thread | 1"NPT male thread 3/4" NPT male thread |
Bubble size | 1-2mm | 1-2mm | 1-2mm |
Design flow | 1.7-6.8m3/h | 3.4-13.6m3/h | 3.4-17.0m3/h |
Working Air Flow | 2-14 m3/h | 5-20 m3/h | 6-28 m3/h |
Service Area | 0.75-2.5m² | 1.0-3.0m² | 1.5-2.5m² |
Usage | Industrial, Home, Hospital, Sewage Treatment Equipment | ||
Transport package | Carton and Pallet | ||
After-sales Service | Online support | ||
